Sliding Doors - or Patio Doors
Sliding doors allow you to enjoy a view while also introducing extra space and light into your space. But these attractive and stylish moving glass walls don’t compromise on security or warmth either.
Series








Customized Options
- Surface Finish: Laminated glass, Triple glass, Low-E glass, Reflective glass, Tinted glass, Bullet-proof glass
| PROFILE THICKNESS | 1.4mm |
| OPENING WAY | Two Tracks / Three Tracks |
| GLASS TYPE | Tempered Glass |
| GLASS THICKNESS | 8mm Single Glass |
| HANDLE | Narrow Special Aluminum Handle |
| WHEEL | Mute Two Wheels |

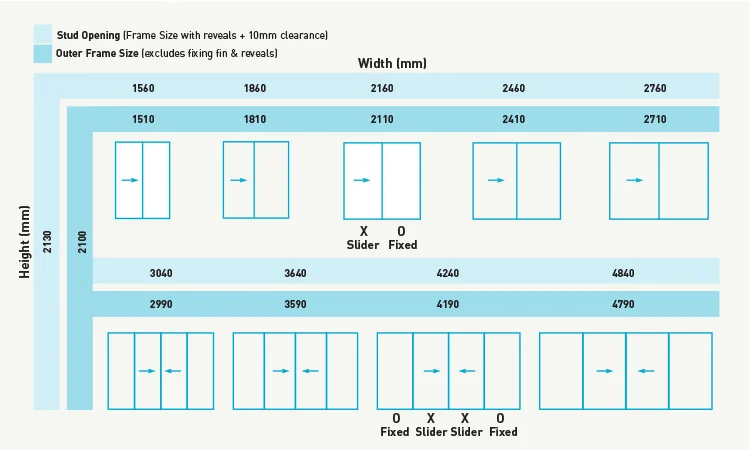

| AVAILABLE SIZE | Opening Panel ( Width:580-1000 / Height:800-2500) |

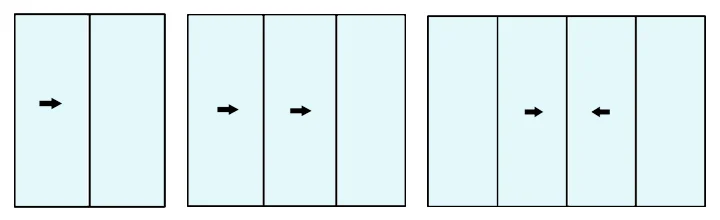

| Door Type | Sliding Door | Door Opening Style |
| U-value (Differ by glass types) | 2.2-3.2 W/m²K | ![]() |
| Water Tightness | 350 Pa | |
| Air Tightness | <0.5[M3/(M.HO)] | |
| Noise Reduction | ≤ 35 dB | |
| Wind Load Capacity | 3500 Pa |
*The performance of the window depends on the type of glass used and the frame material.





Key Features
Copper strip,Hidden drainage high rails, high rail,35 high rail, low rail,waterproof high rail is available
23A Magnet Blinds
21A Electric / Light Blinds
Lock Core With Key
Fingerprint Lock
Dashpot
Customized Options
- Surface Finish: Laminated glass, Triple glass, Low-E glass, Reflective glass, Tinted glass, Bullet-proof glass
| Profile Thinckness | 1.8mm |
| Opening Way | Two Tracks / Three Tracks |
| GLASS TYPE | Double Tempered Glass |
| GLASS THICKNESS | 5mm+20A+5mm ( PVDF Aluminum Strip Between double glass) |
| FLUSH LOCK | PAG Aluminum Hook Lock |
| LOCK POINT | 304 Stainless Steel Single Hook Lock |
| WHEEL | Mute Four Wheels | AVAILABLE SIZE | Opening Panel ( Width: 580-1500 / Height: 800-2800) |
| Door Type | Sliding Door | Door Opening Style |
| U-value (Differ by glass types) | 2.2-3.2 W/m²K | ![]() |
| Water Tightness | 350 Pa | |
| Air Tightness | <0.5[M3/(M.HO)] | |
| Noise Reduction | ≤ 35 dB | |
| Wind Load Capacity | 3500 Pa |
*The performance of the window depends on the type of glass used and the frame material.





Key Features
WEHAG Hardware
- Hidden drainage structure
- The lower rail adopts floor drain drainage
- Hidden nine-fold ladder design
- Anti-typhoon type anti-balance wheel
Customized Options
- Surface Finish: Laminated glass, Triple glass, Low-E glass, Reflective glass, Tinted glass, Bullet-proof glass
| Profile Thinckness | 2.2mm |
| Opening Way | Two Tracks / Three Tracks |
| GLASS TYPE | Double Tempered Glass |
| GLASS THICKNESS | 5mm+27A+5mm ( PVDF Aluminum Strip Between double glass) |
| FLUSH LOCK | WEHAG Aluminum Flush Lock |
| LOCK POINT | 304 Stainless Steel Single Hook Lock |
| WHEEL | Mute Four Wheels |
| HANDLE | HOPO Aluminum Handle |
| AVAILABLE SIZE | Opening Panel ( Width: 580-2000 / Height: 800-3000) |
| Door Type | Sliding Door | Door Opening Style |
| U-value (Differ by glass types) | 2.2-3.2 W/m²K | ![]() |
| Water Tightness | 350 Pa | |
| Air Tightness | <0.5[M3/(M.HO)] | |
| Noise Reduction | ≤ 35 dB | |
| Wind Load Capacity | 3500 Pa |
*The performance of the window depends on the type of glass used and the frame material.





Key Features
- Thermal break aluminum profile
- Narrow Frame Design
- Heavy Duty Design
- 2/3/4 Track are available
- Can do Lift and Sliding Door
Customized Options
- Surface Finish: Laminated glass, Triple glass, Low-E glass, Reflective glass, Tinted glass, Bullet-proof glass
AVAILABLE SIZEOpening Panel ( Width: 580-1500 / Height: 800-2800)
| Profile Thinckness | 2.2mm |
| Opening Way | Two Tracks / Three Tracks |
| GLASS TYPE | Double Tempered Glass |
| GLASS THICKNESS | 5mm+27A+5mm ( PVDF Aluminum Strip Between double glass) |
| FLUSH LOCK | HOPO Hook Lock |
| LOCK POINT | 304 Stainless Steel Single Hook Lock |
| WHEEL | Mute Four Wheels |
| HANDLE | HOPO 340mm Aluminum Handle |
| AVAILABLE SIZE | Opening Panel ( Width: 600-2500 / Height: 800-3000) |
| Door Type | Sliding Door | Door Opening Style |
| U-value (Differ by glass types) | 2.2-3.2 W/m²K | ![]() |
| Water Tightness | 350 Pa | |
| Air Tightness | <0.5[M3/(M.HO)] | |
| Noise Reduction | ≤ 35 dB | |
| Wind Load Capacity | 3500 Pa |
*The performance of the window depends on the type of glass used and the frame material.





Key Features
- Thermal break aluminum profile
- Narrow Frame Design
- Heavy Duty Design
- Use electric opening method (motor imported from Japan)
- Choose single and barrier-free track
- Choose folding screen doors and glass guardrails
Customized Options
- Surface Finish: Laminated glass, Triple glass, Low-E glass, Reflective glass, Tinted glass, Bullet-proof glass
| Profile Thinckness | 2.2mm |
| Opening Way | Single Track / Two Track |
| GLASS TYPE | Double Tempered Glass |
| GLASS THICKNESS | 8mm+22A+8mm ( PVDF Aluminum Strip Between double glass) |
| LOCK POINT | Special lock seat for panoramic door |
| WHEEL | Double row large pulley for panoramic door |
| HANDLE | Integrated handle for panoramic door |
| AVAILABLE SIZE | Opening Panel ( Width: 1300-3000 / Height: 2000-4000) ;Each Fixed panel s18㎡ |
| Door Type | Sliding Door | Door Opening Style |
| U-value (Differ by glass types) | 2.2-3.2 W/m²K | ![]() |
| Water Tightness | 350 Pa | |
| Air Tightness | <0.5[M3/(M.HO)] | |
| Noise Reduction | ≤ 35 dB | |
| Wind Load Capacity | 3500 Pa |
*The performance of the window depends on the type of glass used and the frame material.


Thermal insulation performance
AS/NZS44201 standard:
Uw1.4W/m2K
Wind pressure resistance
AS/NZS4420.1 standard:
±4000Pa
Watertight performance
AS/NZS44201 standard:
600Pa
Sound insulation performance
ISO717 standard:
Rw37dB
Sliding Door |
With Multipoin Lock
Our slider doors feature multiple locking points for enhanced anti-theft capabilities and increased security. At the same time, this multi-point lock system does not occupy space and is beautiful, which can bring a better experience.
Sliding Door |
With Control Blinds
Our aluminum sliding door has the option of custom-controlled blinds. When you are working or enjoying life, the built-in blinds can easily adjust the light and protect your privacy, providing you with convenience and a sense of atmosphere.
Sliding Door |
With Anti-Collision Block
Our aluminum sliding doors also feature impact blocks. An anti-collision block in a sliding door significantly enhances safety by preventing the door from closing too quickly, reducing the risk of accidents, especially in homes with children or pets. It also protects the door from damage, extends its lifespan, diminishes noise during operation, and provides a smoother, more user-friendly experience.
We're Here For Any Service
We’d love to hear from you, if you have any questions, please let us know and we’ll get back to you in the shortest possible time!
- +86 189 8852 7226
- [email protected]
Contact Us
FAQ
A: An aluminum sliding door is a good choice because it saves space, is durable, low-maintenance, energy-efficient, and secure. A garden window is a window that sticks out from the wall and has a shelf for plants. It can give you more light, air, space, and style. You can install both of them together to make your home or office more beautiful and functional.
A: Yes, a high-quality aluminum slide door can withstand harsh weather conditions. They are often designed with weather-resistant materials like reinforced glass and aluminum and come equipped with sealing and weatherstripping to prevent water and air infiltration. It’s important to choose sliding doors that are specifically rated for the weather conditions in your area, such as high winds, heavy rain, or extreme temperatures, for optimal performance and durability.
A: Sliding door have to meet or exceed the requirements of ENERGY STAR, ENERGY STAR Most Efficient, ASHRAE 90.1, and LEED standards in the United States. These standards aim to reduce energy consumption, greenhouse gas emissions, and environmental impact of buildings.
A:Of course!We provide after-sales service to consumers. To obtain a specific service agreement, please contact the PA Home after-sales department.
A: If you want to find a good sliding door manufacturer in the United States, you should consider Casanoah PA Group, which is a branch of PA Home, a leading brand that specializes in bespoke full-system customization. Casanoah PA Group can provide you with local services, such as design consultation, installation, maintenance, and warranty. Casanoah PA Group can offer you high-quality aluminum sliding doors that are durable, affordable, easy to maintain, sustainable, thermally efficient, secure, and aesthetically appealing.
