Hung Window
A casement window is hinged on one side and swings outward to the left or right. It easily opens and closes with a crank that folds away when not in use or an Easy-Slide Operator that uses the same simple motion as dimming the lights with a dimmer switch.
Series
Key Features
- Thermal Break Aluminum Profile
- Narrow Frame Design
- Heavy Duty Design
- Use Eletric Opening Method (Motor Imported from Japan)
- Choose Single and Barrier-Free Track
- Choose Folding Screen Doors and Glass Guardrails
Customized Options
- Surface Finish: Laminated glass, Triple glass, Low-E glass, Reflective glass, Tinted glass, Bullet-proof glass
AVAILABLE SIZEOpening Panel ( Width: 580-1500 / Height: 800-2800)
| PROFILE THICKNESS | 1.5mm |
| OPENING WAY | Vertical Sliding |
| GLASS TYPE | Double Tempered Glass with Argon Ags |
| HARDWARE COLOR | Silver |
| PROFILE COLOR | Black/White/Gray/Coffee(Powder Coating) |
| GLASS THICKNESS | 5mm+9A+5mm(PVDF Aluminum Strip Between Double Glass) |
Thermal insulation performance
AS/NZS44201 standard:
Uw1.4W/m2K
Wind pressure resistance
AS/NZS4420.1 standard:
±4000Pa
Watertight performance
AS/NZS44201 standard:
600Pa
Airtightness coefficient:
Level 5
Sound insulation performance
ISO717 standard:
Rw37dB
Hung Window |
Energy Efficiency
Modern hung window often incorporate energy-efficient technologies. Hung window’s features like double glazing, low-E coatings, and effective weatherstripping keep the home insulated, reducing the need for excessive heating or cooling to reduce energy bills.
Hung Window |
Space-saving
Hanging window are ideal for areas where saving space is important. They open vertically and do not protrude outward or inward, making them ideal for patios, decks, walkways and exterior window.
Top Hardware
The design of the handshaker is simple and generous; the handle can be folded; and the design sense is full. Window with handles on the sides to make them more waterproof and hurricane-resistant. Handshake and side lock are more convenient and safer during use.
We're Here For Any Service
We’d love to hear from you, if you have any questions, please let us know and we’ll get back to you in the shortest possible time!
- +86 181 2663 8382
- [email protected]
Contact Us
FAQ
A: Aluminum hung window are durable, affordable, easy to maintain, sustainable, thermally efficient, secure, and aesthetically appealing. They also can suit different types of homes and climates.
A: The advantages of hung window include traditional aesthetics, affordability, variety in design options, ease of use, and effective ventilation. Single-hung window are typically more energy-efficient and cost-effective, while double-hung window offer greater airflow and easier cleaning.
A: Aluminum window have to meet or exceed the requirements of ENERGY STAR, ENERGY STAR Most Efficient, ASHRAE 90.1, and LEED standards in the United States. These standards aim to reduce energy consumption, greenhouse gas emissions, and environmental impact of buildings.

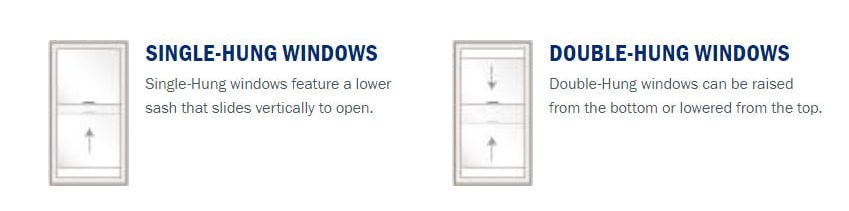

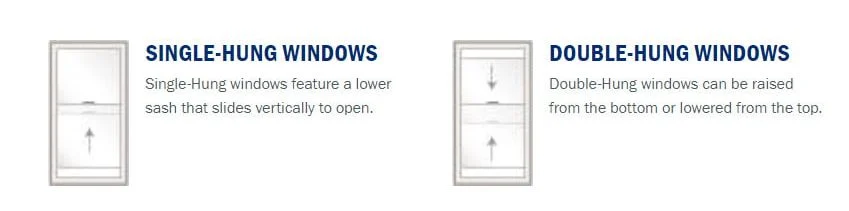

A: Choosing between single hung and double hung window depends on your needs. Single hung window are typically less expensive and have a fixed upper sash, making them slightly more energy-efficient. Double hung window are more versatile since both the upper and lower sashes can move, allowing for better airflow and easier cleaning.
A: If you want to find a good aluminum hung window manufacturer in the United States, you should consider Casanoah PA Group, which is a branch of PA Home, a leading brand that specializes in bespoke full-system customization. Casanoah PA Group can provide you with local services, such as design consultation, installation, maintenance, and warranty. Casanoah PA Group can offer you high-quality aluminum hung window that are durable, affordable, easy to maintain, sustainable, thermally efficient, secure, and aesthetically appealing.
