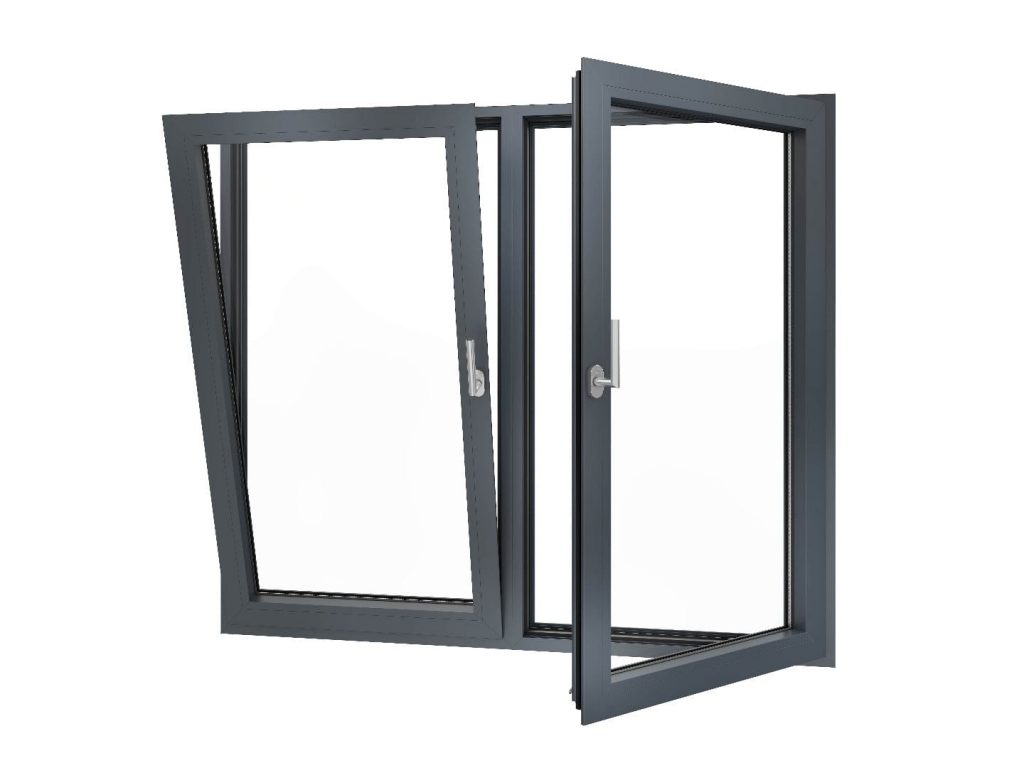

Tilt and Turn Window
A tilt and turn window can both tilt inwards at the top, like a hopper window, or open inwards from hinges at the side. The tilt position provides draft-free ventilation and rain protection. In the turn position, Tilt & Turn window act as casement window, swinging their full glass area open.
Series
Key Features
- Thermal break aluminum profile·
- National patent: Six-Point Lock
- Hidden drainage
- Triple insulated strip
- Wider track design with stronger wind load performance
Customized Options
- Surface Finish: Laminated glass, Triple glass, Low-E glass, Reflective glass, Tinted glass, Bullet-proof glass
| Profile Thinckness | 2.0mm |
| Opening Way | Sliding and Tilting |
| Glass Thickness | 5mm+27A+5mm (PVDF Aluminum Strip Between double glass) |
| Available Size | Opening Panel ( Width:600-900/Height:1000-2400） |
| Lock Point | Randhw Hinge |
Thermal insulation performance
AS/NZS44201 standard:
Uw1.4W/m2K
Wind pressure resistance
AS/NZS4420.1 standard:
±4000Pa
Watertight performance
AS/NZS44201 standard:
600Pa
Airtightness coefficient:
Level 5
Sound insulation performance
ISO717 standard:
Rw37dB
A Higher-Performing Style
PA Home’s tilt-turn window are engineered to perform. They are stylish, durable, energy efficient and available in an extensive variety of styles, colors, and configurations, ideal for unique situations where you want additional ventilation or access. We’re ready for any project support or bespoke solutions.
Secure Locking
PA Home’s tilt-turn window use multi-point hardware units available to provide a smooth operation. This multi-point locking mechanism offers great security and superior air sealing. Also, our window can both swing in and tilt in with an easy turn of our well-designed handles.
Top Hardware
The entire system hardware is Wehag, imported from Germany. The elegant security window handle is coated with silver ions, which can effectively inhibit bacteria by up to 99%.
We're Here For Any Service
We’d love to hear from you, if you have any questions, please let us know and we’ll get back to you in the shortest possible time!
- +86 189 8852 7226
- [email protected]
Contact Us
FAQ
A: It depends on your needs and preferences. If you want a window that’s easy to open for ventilation, then tilt and turn window are a great choice. But if you prefer a window that can be opened wide for more air circulation, casement window may be the better option for you.
A: Due to the complexity of their opening mechanisms, tilt-and-turn window are generally slightly more expensive than casement window. However, the final cost may vary based on size, glazing options, and other customisable features.
A: Aluminum window have to meet or exceed the requirements of ENERGY STAR, ENERGY STAR Most Efficient, ASHRAE 90.1, and LEED standards in the United States. These standards aim to reduce energy consumption, greenhouse gas emissions, and environmental impact of buildings.
A: European tilt and turn window are window that have hinges at the top and open outward from the bottom, creating an awning-like shape. They are popular for their durability, ease of operation, and energy efficiency1. Traditional window are window that open outward or inward from the side, depending on the type of window. They are more common in the US, we can customized with your needs and preferences.
